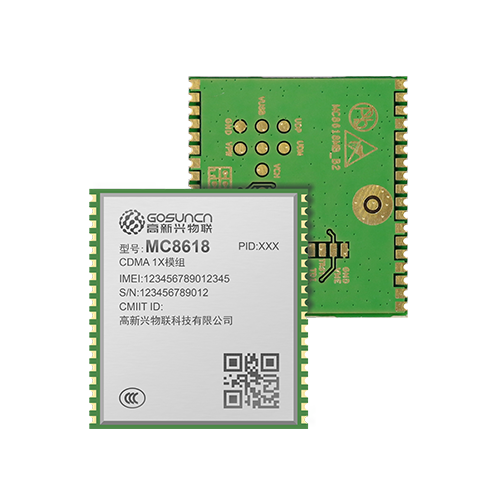

MC8618为小尺寸LCC紧凑型封装模组,支持CDMA 2000 1X 800MHz频段,支持中国电信空中写号技术。
MC8618以其小型化的封装,适用于可穿戴设备等对于模块尺寸有严格要求的应用领域。
产品亮点:
基于成熟平台开发,支持153.6Kbps上下行速率;
LCC 22*20超小尺寸封装;
支持标准AT指令集和中兴物联扩展AT指令集;
支持TCP/UDP以及FTP协议栈* 支持双UART接口;
* LCC Form Factor (36pin)
--Pin-to-Pin with MG2618
* Dimensions: 20.0 mm x 22.0 mm x 2.00 mm
* Frequency Band:
--CDMA2000 1X 800MHz
* Transmit Power:
--CDMA2000 1X : 24 +0.5/-0.5 dBm @ All up bits
* Receiving sensitivity:
--CDMA2000 1X : ≤-108dBm
* Power Supply
--3.3V~4.2V (3.8V is recommended)
* Power Consumption:
--Sleep: 2.9mA@ RX:-75dBm (Typical)
--Idle: 20mA@ RX:-75dBm (Typical)
--Call: 128mA@ RX:-75dBm (Typical)
* Operation temperature: -30°C to +75°C
--Extreme working condition: -40°C to +85°C
* Storage temperature: -40°C to +85°C
* Humidity: 5% ~ 95%
* V2D--CDMA 1x 800M
* CDMA2000 1X
--Uplink 153.6 kbps / Downlink 153.6 kbps
* Support Text and PDU mode
* Point to point MO and MT
* SMS Status Report
* SMS centre address setting
* Management of SMS
* UART1 ( 8-wires)
* UART2 (2-wires)
* UIM interface (1.8/3.0V)
* LED Indication
* Antenna (Pads)
* Power-on & Power-off & Reset
* Support embedded TCP & UDP protocols
* Support embedded FTP protocols
* Support protocols PAP and CHAP for PPP connection
* Network & Band & SIM Lock
* SMS
* FOTA (only V2C support)
* OpenLink
* RAS
* Support MDMP (M2M Device Management Protocol)
* Control Via AT Commands
* Drivers
--Windows XP , Vista , 7 , Win CE, Windows Mobile,
--Linux,
--Android
* Diag-log Tool for Windows, Android, Linux
* Firmware update Tool
* CCC
* CMIIT
* CTA
* RoHS
* China Telecom
