The SIM7600 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc.
- LCC1 form factor with abundant interfaces
- Suitable for LTE, UMTS and GSM networks with global coverage
- Abundant software functions: FOTA, LBS, TLS, VoLTE
- Multi-constellation GNSS receiver support
- AT commands of the SIM7600 series are compatible with the SIM7500/SIM7600-H series modules
|
Product |
SIM7600A |
SIM7600SA |
SIM7600E |
|
|
Form Factor |
LCC, 87PIN |
LCC, 87PIN |
LCC, 87PIN |
|
|

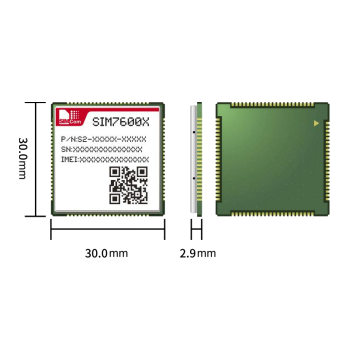

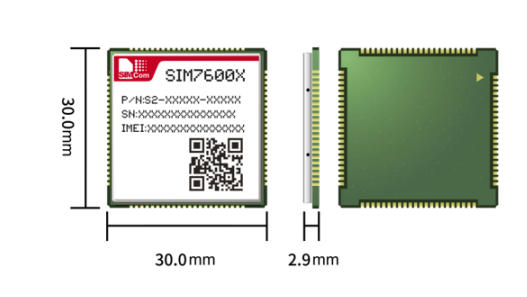

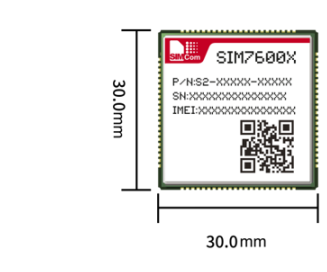

Dimensions(mm) |
30.0*30.0*2.9 |
30.0*30.0*2.9 |
30.0*30.0*2.9 |
|
|
Frequency Bands |
LTE-FDD |
B2/B4/B12 |
B1/B2/B3/B4/B5/B7/B8/B28/B66 |
B1/B3/B5/B7/B8/B20 |
|
LTE-TDD |
|
B40 |
B38/B40/B41 |
|
|
WCDMA |
B2/B5 |
B1/B2/B5/B8 |
B1/B5/B8 |
|
|
GSM |
|
850/900/1800/1900MHz |
900/1800MHz |
|
|
GNSS |
o |
o |
o |
|
|
Temperature |
-40℃ ~ +85℃ |
-40℃ ~ +85℃ |
-40℃ ~ +85℃ |
|
|
Electrical Features |
||||
|
Supply Voltage(V) |
3.4~ 4.2 |
3.4~ 4.2 |
3.4~ 4.2 |
|
|
Power Consumption (mA) |
LTE |
2.3 |
2.3 |
2.3 |
|
WCDMA, DRX=9 |
3.3 |
3.3 |
3.3 |
|
|
GSM, BS_PA_ MFRMS=2 |
2.8 |
2.8 |
2.8 |
|
|
Data Transfer |
||||
|
LTE(Mbps) |
10(DL)/5(UL) |
10(DL)/5(UL) |
10(DL)/5(UL) |
|
|
HSPA+(Mbps) |
42(DL)/5.76(UL) |
42(DL)/5.76(UL) |
42(DL)/5.76(UL) |
|
|
WCDMA(Kbps) |
384(DL)/384(UL) |
384(DL)/384(UL) |
384(DL)/384(UL) |
|
|
GPRS/EDGE(Kbps) |
|
236.8(DL)/236.8(UL) |
236.8(DL)/236.8(UL) |
|
|
Software Features |
||||
|
Protocol |
TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS |
TCP/IP/IPV4/IPV6/Multi-PDP/ FTP/FTPS/HTTP/HTTPS/DNS |
TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/HTTPS/DNS |
|
|
TLS |
● |
● |
● |
|
|
File System |
● |
● |
● |
|
|
Audio Record/Play |
o |
o |
o |
|
|
TTS |
o |
o |
o |
|
|
DTMF |
o |
o |
o |
|
|
LBS |
● |
● |
● |
|
|
FOTA |
● |
● |
● |
|
|
Jamming Detection |
● |
● |
● |
|
|
Android RIL |
Android 5.0/6.0/7.0/8.0/9.0 |
Android 5.0/6.0/7.0/8.0/9.0 |
Android 5.0/6.0/7.0/8.0/9.0 |
|
|
USB Driver |
Microsoft Windows 7/8/10 Linux/Android |
Microsoft Windows 7/8/10 Linux/Android |
Microsoft Windows 7/8/10 Linux/Android |
|
|
WWAN (RNDIS) |
● |
● |
● |
|
|
ECM |
● |
● |
● |
|
|
MBIM |
Win8/Win10 |
Win8/Win10 |
Win8/Win10 |
|
|
NDIS |
Linux/Windows 7/8/10 |
Linux/Windows 7/8/10 |
Linux/Windows 7/8/10 |
|
|
Firmware Upgrade |
USB/FOTA |
USB/FOTA |
USB/FOTA |
|
|
Interfaces |
||||
|
SIM Card |
1.8V/3.0V |
1.8V/3.0V |
1.8V/3.0V |
|
|
UART |
● |
● |
● |
|
|
USB |
● |
● |
● |
|
|
PCM |
o |
o |
o |
|
|
ADC |
● |
● |
● |
|
|
SD Card |
● |
● |
● |
|
|
SPI |
o |
o |
o |
|
|
I2C |
● |
● |
● |
|
