With a rich protocols, it is integrated with interfaces such as PCIe, USB3.1, GPIO etc. This module provides applications with great flexibility and ability of integration. A8200C adopts LGA form factor. AT commands of A8200C are compatible with A8200X series modules. This also minimizes costs for customer and shortens time to market. It is designed for applications that need huge data transmission in various wireless situations. Due to its high efficiency, security and flexibility, this module suits various applications.

产品亮点

- LGA form factor with various interfaces

 - Medium data transmission

- AT commands of A8200C compatible with A8200X series modules

基本属性

Form Factor         LGA

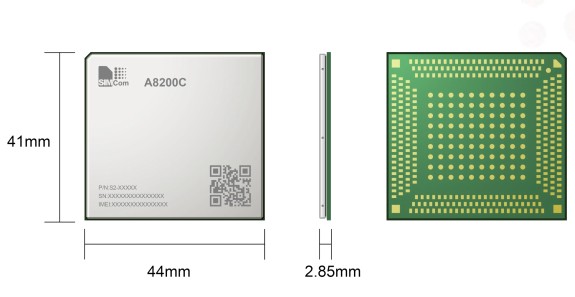

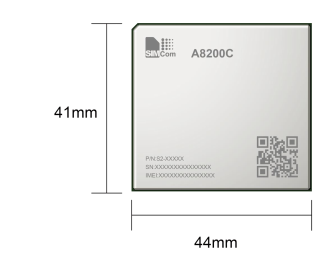

Dimensions(mm)     41.0*44.0*2.85

Temperature         -30℃ ~ +70℃

Supply Voltage(V)     3.3 ~ 4.4

频段

5G SA          n1/n3/n5/n8/n28/n41/n77/n78/n79

5G NSA         n1/n3/n5/n8/n28/n41/n77/n78/n79

5G UL 2*2       MIMO n41/n77/n78/n79

5G DL 4*4       MIMO n1/n3/n41/n77/n78/n79

LTE-FDD         B1/B3/B5/B8

LTE-TDD         B34/B38/B39/B40/B41

WCDMA         B1/B5/B8

数据传输

Sub-6G NSA       2.15Gbps(DL)/550Mbps(UL)

Sub-6G SA        4Gbps(DL)/1Gbps(UL)

LTE              300Mbps(DL)/50Mbps(UL)

HSPA+           42Mbps (DL)/5.75Mbps(UL)

软件功能

Protocol          TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0

USB Driver        Microsoft Windows Win7/Win8/Win10/Win11/Linux/Android

接口

SIM Card         SIM*2

USB             USB3.1 PCIe PCIe GEN3*2

认证

Regulatory       RoHS*/REACH*/CCC*/CTA*/TA*
