With a rich protocols, it is integrated with interfaces such as PCIe, USB2.0, GPIO etc. This module provides applications with great flexibility and ability of integration.    SIM8230 adopts LGA form factor. AT commands of SIM8230 are compatible with SIM7600/8200/8260 series modules. This also minimizes costs for customer and shortens time to market. It is designed for applications that need huge data transmission in various wireless situations. Due to its high efficiency, security and flexibility, this module suits various applications.

产品亮点

- LGA+LCC form factor with various interfaces

- Medium data transmission

 - AT commands of SIM8230 compatible with SIM7600/8200/8260 series modules

基础信息

Form Factor       LGA+LCC

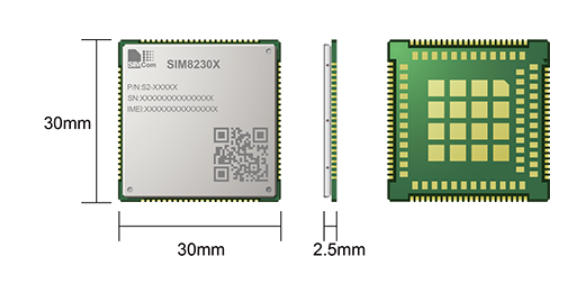

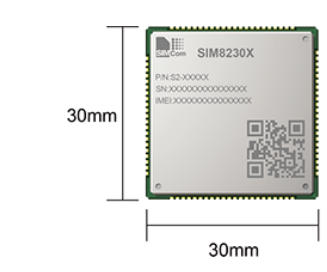

Dimensions(mm)  30.0*30.0*2.5

Frequency Bands

5G SA             n1/n3/n5/n8/n28/n40/n41/n78/n79

LTE-FDD           B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41

GNSS              support

Temperature        -40℃ ~ +85℃

Supply Voltage(V)    3.3 ~ 4.4

软件功能

Protocol         TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0

Android  RIL      Android 6/7/8/9

USB Driver        Microsoft Windows Win7/Win8/Win10/Win11/Linux/Android

MBIM             Win8/Win10

NDIS              Linux/Win7/Win8/Win10

Firmware Upgrade  USB

接口

SIM Card           1.8V/2.95V

认证

Regulatory          CE(RED)*/GCF*/FCC*/PRCRB*/RoHS*/REACH*
