It has strong extension capability with rich interfaces including UART, GPIO etc. The module provides much flexibility and ease of integration for customer's application. The package of Y7080E is compatible with mainstream models on the market . This also maximizes the investments of customers, and enables a short time-to- market.

It is designed for applications that need Low power consumption, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..

产品亮点

•With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), Y7080E can extend battery life to 10 years

•Y7080E provides deeper coverage enhancement compared to GSM

General Features

Frequency Bands: Cat-NB2 B3/B5/B8/B20/B28

Control Via AT Commands

Supply voltage range：

3.0V~4.2V [NB+GNSS]

2.2V~4.2V [NB only]

Operation temperature: -40℃ to +85℃

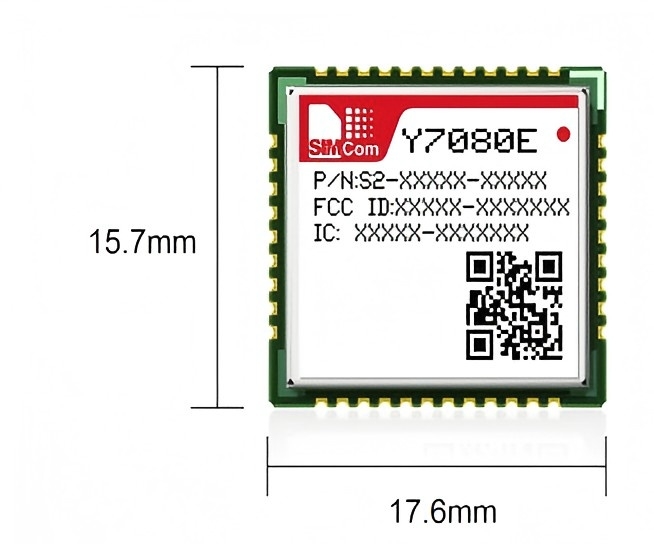

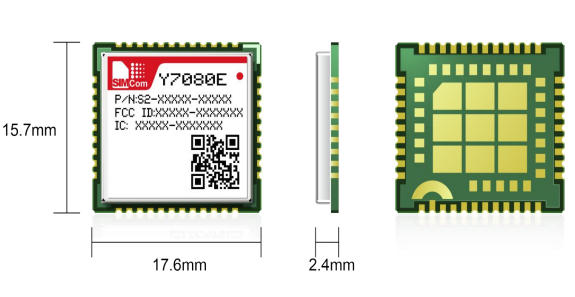

Dimensions: 17.6×15.7×2.4 mm

Weight: 1.2g±0.2g

GNSS(Optional): Support GPS/GLONASS/Galileo*

Data

Uplink: 159Kbps Downlink:127Kbps

GNSS(Optional)

Time-To-First Fix2：

Cold starts 29s

Hot starts <2s

Consumption

NB only

1.7uA@ PSM

0.48mA @ Idle（DRX=2.56s）

0.25mA @ Idle （eDRX=40.96s；PTW=81.92s）

Certifications

Carrier: Vodafone*/ Deutsche Telekom*/ Telefónica*/

Orange*/Mobile*/Unicom*/Telecom*

Regulatory: GCF*/ CE*/ RoHS*/REACH*/CAT*/SRRC*

Other Features

Firmware update via UART

 TCP/UDP/HTTP/DNS/NTP/PING/TLS*/DTLS*

 LWM2M*/COAP/MQTT

OneNET/CTWING

DFOTA

Interfaces

UART

USIM card (1.8V/3V)

Netlight

RI

ADC

GPIO
