It has strong extension capability with rich interfaces including UART, GPIO, PCM, SPI, I2C etc. The module provides much flexibility and ease of integration for customer's application.

It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, the SIM7080G module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..

产品亮点



• With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7080G can extend battery life to 10 years.

• CAT-M, NB-IoT dual mode

• The package of SIM7080G is compatible with SIM868

Product



①　SIM7080G

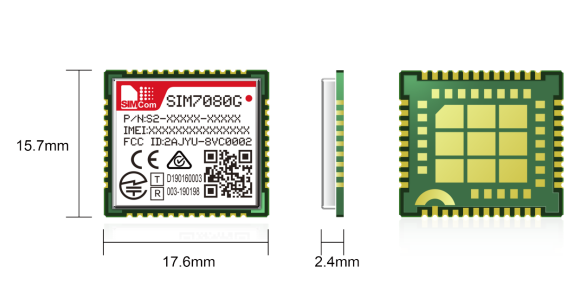

Form Factor           LCC+LGA, 77PIN

Dimensions(mm)    17.6*15.7*2.3

Frequency Bands

Cat-M                   B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/
                           B25/B26/B27/B28/B66/B85

Cat-NB                 B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/
                           B26/B28/B66/B71/B85

RF Power             Class Class 5 (Typ. 21dbm)

GNSS

Temperature          -40℃ ~ +85℃

Electrical Features



Supply Voltage Range(V)    2.7~ 4.8

Power Consumption

@PSM(uA)                        3.2

@Sleep(mA)                     0.6

@Idle(mA)                       10

Data Transfer



Cat-M    (Kbps) 589(DL)/1119(UL)

Cat-NB    (Kbps) 127(DL)/158.5(UL)

Software Features



Protocol         TCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS/PING/ LWM2M/COAP/MQTT

FOTA

Embedded AT

Firmware Upgrade    USB/FOTA

Interfaces



SIM Card 1.8V

Certification



Regulatory      RoHS/REACH/NCC/JATE/TELEC/KC/RCM/CE/GCF/UKCA/FCC /PTCRB /IC

Carrier
DoCoMo*/KDDI/Softbank/Orange*/TIM/DeutscheTelekom/Telefonica/AT&T/VERIZON/T-mobile/US Celluar/OCD(Anatel)

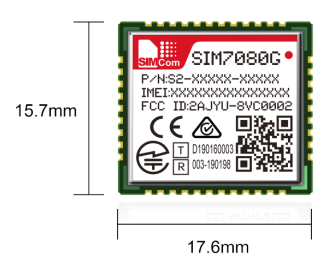

SIM7080G-M

Form Factor            LCC+LGA, 77PIN

Dimensions(mm)     17.6*15.7*2.3

Frequency Bands

Cat-M                    B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/ B25/B26/B27/B28/B66/B85

RF Power               Class 5 (Typ. 21dbm)

GNSS

Temperature          -40℃ ~ +85℃

Electrical Features



Supply Voltage Range(V)    2.7~ 4.8

Power Consumption

@PSM(uA)                        3.2

@Sleep(mA)                     0.6

@Idle(mA)                       10

Data Transfer



Cat-M    (Kbps) 589(DL)/1119(UL)

Cat-NB (Kbps) 127(DL)/158.5(UL) 127(DL)/158.5(UL)

Software Features



Protocol                  TCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS/PING/ LWM2M/COAP/MQTT

FOTA

Embedded AT

Firmware Upgrade    USB/FOTA

Interfaces



SIM Card                  1.8V

Certification



Regulatory      RoHS/REACH/NCC/JATE/TELEC/KC/RCM/CE/GCF/UKCA/FCC /PTCRB /IC

Carrier

DoCoMo*/KDDI/Softbank/Orange*/TIM/DeutscheTelekom /Telefonica /AT&T /VERIZON/T-mobile/US Celluar/OCD(Anatel)
