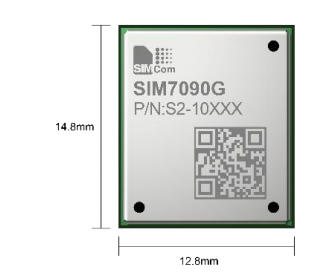

SIM7090 adopts LGA form factor and has a compact size of 14.8mm*12.8mm which makes it ideal for compact products design.

SIM7090 has powerful expansibility with abundant interfaces including UART, GPIO, PCM, SPI, I2C etc. The SIM7090 is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.

产品亮点

• With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7090G can extend battery life up to 10 years

• SIM7090 provides deeper coverage enhancement compared to GSM

• Ultra compact size for wearable tracker application

General Features

Frequency Bands

Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/ B18/B19/B20/B25/B26/B27/B28/B66/B85

Cat-NB: B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B25/B26/B28/B66/B71/B85

LTE RF Power Class: Class 5 (Typ. 21dbm)

Supply voltage: 2.7V-4.8V

Control Via AT Commands

Operation temperature: -40℃ ~ +85℃

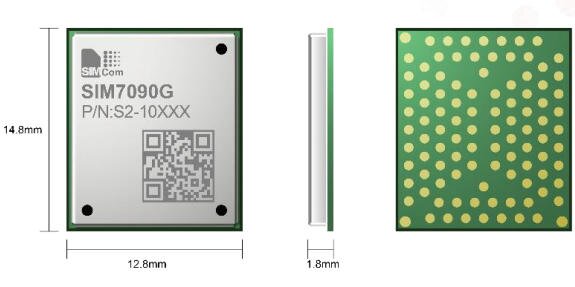

Dimensions: 14.8*12.8*1.8mm

Weight: 0.8g±0.2

Data

Cat-M

Uplink 1119Kbps

Downlink 589Kbps

Cat-NB

Uplink 158.5Kbps

Downlink 127Kbps

Power Consumption

PSM: 3.2 uA

Sleep: 0.8 mA

Idle: 10 mA

Other Features

TCP/UDP/HTTP/HTTPS/FTP TLS/DTLS/PING/LWM2M/COAP/MQTT

AYLA Cloud

Firmware update via USB

 FOTA

 EAT

Interfaces

UART

SIM (1.8V)

PCM/I2S

SPI I2C

GPIO

ADC

USB

Certifications(plan)

RoHS/REACH/JATE/Telec/RCM/CE(RED)/

GCF/Orange/Deutsche Telekom/FCC/

PTCRB/AT&T/Verizon*/T-mobile/US Cellular/IC/OCD(Anatel)
